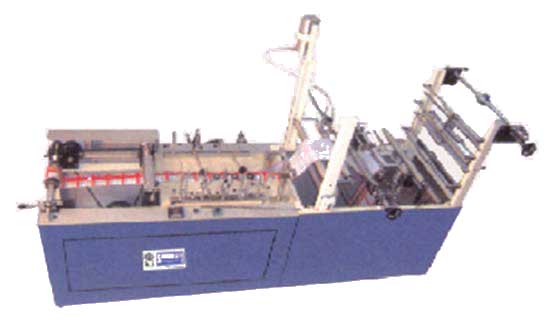

Gluing & Rewinding Machine |
|
 |
• Latest glue dispenser system.
• High Speed.
• Easy Operation.
• Maintenance Free. |
• Accurate tension control.
• Minimum overlap area can be done.
• Immediate change over system. |
|
Technical Details
| Maximum Web Width |
610 mm |
| Minimum Label Width |
30 mm [TUBE FORM ] |
| Maximum Liable Width |
300 mm [TUBE FORM ] |
| Maximum Machine
Speed |
140 Meters /Min. |
| Main Drive |
3 Phase Ac. Motor |
| Electrical Load |
2.0 KW. |
| Speed Display |
Digital Prog. Counter |
|

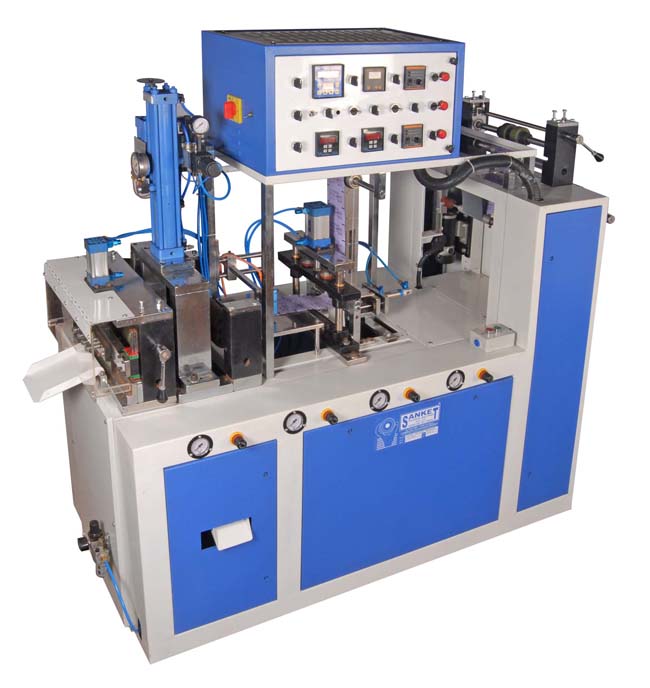

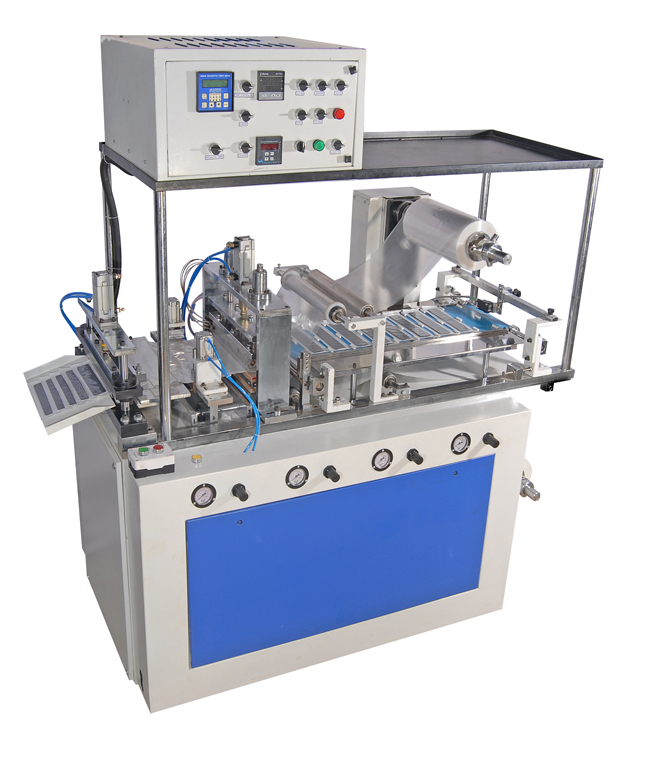

Technical Specification of Suture Packing
Machines
|
1. Number Of Station (Sealing) |
:
|
ONE
|
|
2. Number Of Station (Punch) |
: |
ONE * VERTICAL |
|
3. Minimum Web Width |
: |
80 MM |
|
4. Maximum Web Width |
: |
160 MM |
|
5. Machine Length |
: |
1650 MM (APPROX) |
|
6. Machine Width |
: |
750 MM |
|
7. Machine Height |
: |
1650 MM |
|
8. Minimum Suture Folder |
: |
3/8” |
|
9. Maximum Suture Folder |
: |
1 ½” |
|
10. Maximum Machine Speed |
: |
40 PCS / MIN. |
|
11. Main Drive
|
: |
ONE COMMON MOTOR |
|
12. Unwind Drive |
: |
SYNCHRONIZED TO MAIN DRIVE
|
|
13. Cutting Function *
|
: |
PNEUMATIC* |
|
14. Sealer Function |
: |
PNEUMATIC SYSTEM |
|
15. Machine Color |
: |
SWAN WHITE & VIP BLUE |
|
16. Weight Of Machine |
: |
800 KGS. (APPROX) |
|
17. Synchronic Motor |
: |
PANASONIC |
|
18. Unwind Motor |
: |
0.25 HP. (02 NOS.) |
|
19. Electrical Load |
: |
3.5 KW. |
[ * ] Optional Attachment
|
